A step-by-step guide to measuring your windows.
How to be a laser measure master.
Review Your Tools
Multi-Tool*
Product Type Samples
Compression Tube Color Samples
Indow Tape Measure
Adjustable Diagonal Extension Tool
*See appendix for all uses of this tool & more measurement tips & terms.
Other Tools to use: Online Portal - Record your measurements as you go on the Measure Form provided. Our online portal, Measure by Indow®, is where you record your final measurements. You should have received an access link via email. If you can’t find it, go to Measure Support
Measurement Phone Support - We have in-house measuring experts dedicated to helping you measure your windows and resolving any issues you may run into. If you need assistance, we’re here to help: 503.284.2260
NOTE: Keep the USPS shipping box and return label the Laser Measuring Kit came with. You’ll need them to mail the kit back to Indow! Return all items so you’re not charged for them.
How To Use A Laser Measure
Prepare to Measure
Remove any furniture around the windows for easy access and a more accurate measurement. If you have blinds that have to be removed, now is a good time.
Review the paper Measure Form included in the kit. Use this to list each window you measure. We suggest starting with the leftmost window and moving right.
Record:
- Room and Location (as you want them to appear on the insert label)
- Product Type (Standard Grade, Acoustic Grade, Sleep Panels, etc.)
- Tubing Color
If you were sent mullion* instructions by your Fit Specialist, refer to the Mullion Guide handout to install the L brackets before measuring.
NOTE: Measuring a lot of windows? Start with 3 or 4, then enter measurements into the Measure by Indow portal to make sure they are accepted before continuing. *See appendix for more.
Frame Step & Depth
Frame step is the flat surface within your window frame and where your insert will be installed. Frame depth* is how deep your frame step is. If you think of the window frame width as left to right, frame depth is front to back. Place your laser tool on your desired frame step and point straight across. Record the Frame Depth on your Measure Form. You do not need to include the Frame Step - this is for your reference only. *See appendix for full explanation of frame depth and fraction chart
Assessing Each Window
Label Windows
Label the window you’re measuring on the Measure Form so you can identify it when you enter measurements into the Measure by Indow portal. We use this information to create labels for your inserts so you know which insert goes where.
Note: Please use a unique combination of room and location names for each window.
Measure Twice!
“Measure twice, cut once” applies here too! As we custom cut each insert to match your windows, we want to ensure a snug fit within your frames. For each window, we recommend measuring twice and filling out two rows of your Measure Form. If the measurements match or are within 1/16" of each other, scratch out a row and proceed. If the measurements differ, remeasure.
Identify Frame Step
Some windows have more than one frame step, while other windows have just a single, flat surface. This example shows two frame steps, (1) in blue and (2) in yellow. For each window, you will be taking a set of 6 measurements which must be taken on the same frame step. A compatible frame step must have:
- 5/8" of flat space
- At least 1/2" of space from window glass
- No obstructions such as blinds, shutters, shades, handles, cranks, or locks
- 1 1/4" behind the blinds at the top of the frame, if installing with blinds present
Use the multi-tool (item 2 in the kit) to check for the above minimums. You can also slide the end of the tool all the way around the window frame to check for obstructions.
Note: For noise reduction, the better frame step is at least 1”- 4” away from the window glass. See appendix or watch this video for more help.
How to Use the Laser Tool

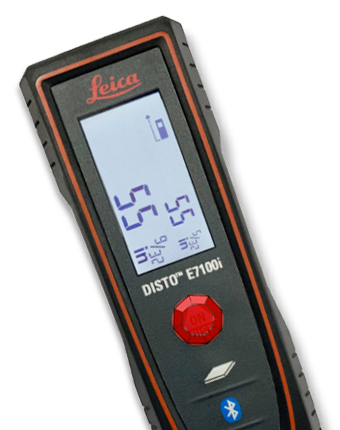

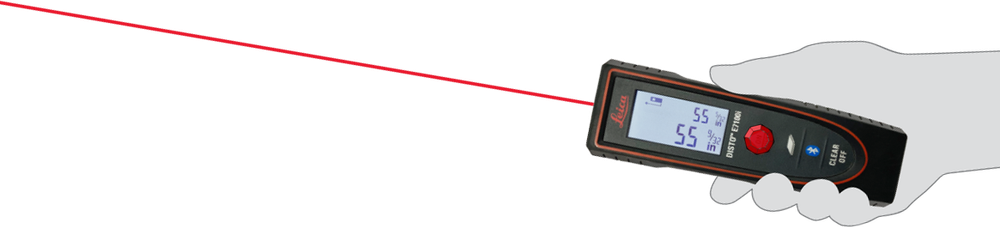

Take out the laser. (Item 1 in the kit.) You only need to use the red ON button and the CLEAR/OFF button.
Place the base of the Laser Measure Tool (side opposite laser beam) on the frame step of the side you are measuring.
Press the red ON button, identified by the jewel, to turn on the laser. Keep your eye on the laser beam to make sure it doesn’t move off the frame step where the insert will be installed. The raised jewel will help you identify the ON button while staying focused on the laser beam.
Press the red ON button again to take your first measurement. Your measurement will appear on the screen displayed in inches and fractions. If your laser does not automatically display inches and fractions, see appendix Laser Measure Tool Mode before measuring.
Press the red ON button again to reactivate the laser beam.
Press the red ON button a fourth time to take a second measurement, which will appear on the laser’s screen in larger text below the first measurement. If the numbers match, record your measurement. If the measurements are within 1/16" of each other, that’s okay too - just use the larger of the two measurements. If they are more than 1/16" apart, keep measuring until they are within 1/16th of an inch of each other*.
Record measurements exactly as they are shown on the laser onto the Measure Form, e.g.: 55 9/32. Write the whole number and the fraction with no additional symbols.
Need Help?
Check out our "Your Window With A Laser Tool" video guide or schedule a Measure Support call.
*See appendix for full explanation of frame depth and fraction chart.
Measuring Top & Bottom Widths
A Width Top
Locate the frame step the inserts will be installed on. Place the base of the laser tool against the frame (top left) where the insert is going to be installed, and point the laser beam straight across the window frame (top right). It’s often best for the laser to touch the top and left side of the window, but the tool can face out or down as long as it lies flat against the frame and the laser dot falls where the insert will be installed. Take your measurements.
Note: The laser captures its measurements from the base of the unit, so it’s critical the base sits flat against the frame to get accurate height and width measurements.
Write the measurement on your Measure Form under the column ‘A Width Top’. Record the fractional measurements exactly as your laser displays them. Measure twice! Until you have at least two measurements within 1/16" of each other.
B Width Bottom
Use the same frame step as before. Press the base of the laser flat against the bottom left side of your window frame with the laser’s beam straight across as seen in the diagram. Record your measurements on ‘B Width Bottom’ on the Measure Form. Measure twice! Until you have at least two measurements within 1/16" of each other.
Tip: Not seeing fractions? See appendix Laser Measure Tool Mode. We recommend you completely measure each window twice and record on two rows on the form. If the rows match or each measurement is within 1/16", scratch one row out.
C Height Left
Using the same frame step as before, place the laser in the bottom left of the window frame pointed straight up as seen in the diagram to measure the height of the frame’s left side. Measure twice! Write these measurements on your Measure Form under ‘C Height Left’.
D Height Right
Now do the same height measurement from the bottom right of the window frame, inputting your measurements into ‘D Height Right’ on the Measure Form.
Tip: Textured surface or a sloped frame causing issues? Mark where the insert will be installed with tape to have a target for the laser.
Measuring Diagonals
Take out the Adjustable Diagonal Extension Tool (item 6 in the kit). This stabilizes the Laser Measure Tool against the window frame while you take the diagonal measurements. These diagonal measurements are critical for a snug fit of your Indow inserts.
Think of measuring the diagonals like an arcade game; timing and patience will help you win. Extend the stabilizing leg of the Adjustable Diagonal Extension Tool outward and adjust the tension on the bolt to stabilize the leg. Magnetically connect the laser to the face of the tool so the magnets snap together.
Check for any paint buildup, textured sheetrock, corner gaps, or rounded-off areas in the joints of your frame step. If these are present, take more measurements and look for the longest distance keeping curves and gaps in the frame in mind.
E Diagonal Left
Place the tail of the extension tool in the bottom left joint of the frame step. Adjust the tool’s stabilizing leg along the frame until the laser beam rests in the opposite upper right joint of the frame as seen in the diagram. Keep an eye on the beam to ensure it doesn’t move off the frame step while your other hand is ready to press the red ON button. When the laser dot is in the joint, and equally on the top and side of the frame, take your measurements. Measure twice! Until you have at least two measurements within 1/16" of each other. Write the measurement under ‘E Diagonal Left’ on the form.
Note: The joint is where the two sides of the window frame meet. When you measure from joint to opposing joint, still measure to and from the frame step where your insert will be installed.
Note: Record the fractional measurements exactly as they appear on the laser’s display. The window opening is larger than the laser shows, however the length of the extension tail is automatically added in the Measure by Indow portal.
F Diagonal Right
Repeat instructions for E Diagonal Left, but with the laser and extension tool in the bottom right joint of the window frame pointed toward the top left joint. Measure the diagonal of the right side of the frame and write under ‘F Diagonal Right’ on the Measure Form.
Tip: Be careful! The laser dot moves easily. Want some additional tips? See appendix Diagonal Tool Tips.
E Diagonal Left
F Diagonal Right
Final Window Check
Any number of reasons can cause a frame to curve or bow over time. There are convex (outward) bows and concave (inward) bows. Checking for bows ensures your inserts will fit snugly within the frames.
Check for Bows
Convex: Stretch the Indow Tape Measure (item 5 in the kit) from corner to corner on one side. Pull it tight to see if there’s a point where the tape isn’t touching the frame (see convex diagram). If you see a gap, the frame has an outward convex bow. Check all four sides of each window.
Concave: Stretch the tape measure across the face of the frame to see if any points of the frame dip toward the window's interior or pass over the tape (see concave diagram).
Note: You can use string, a level, or other straightedge tool if you’d prefer.
This window has no bow.
This window has an outward or convex bowed frame.
This window has an inward or concave bowed frame.
If you detect a gap thicker than a pencil tip, follow the directions below. If you don’t detect any bows, continue to Submit Measurements Online.
To measure the height of an inward or outward bow in a frame, tape both ends of the tape measure to the corners so the tape is taut, and use a ruler to measure the height of the bow where the gap is largest. Alternatively, someone can help measure the bow height while you hold the tape measure taut.
If the frame is bowed more than ⅛" (the thickness of a pencil tip), record which side of the frame is bowed – the direction (inward or outward) and the bow height – in the “Notes” section of the Measure Form. Be sure to include where on the frame it’s highest and the start and stop location of the bow in inches. If the bow is on the bottom or top, provide the distance from the left where the gap is largest.
Example: The frame has a 9/32" high inward gap on the left side, three inches from the bottom left hand corner of the sill.
Submit Measurements Online
It’s time to enter your measurements into the Measure by Indow portal!
Can't find the link to access your Measure By Indow portal? Contact Measure Support.
Check your email for your Measure by Indow link to access the portal, subject line includes “Measure by Indow”.
Click ADD WINDOW and add the measurements for your windows, one at a time. Follow along your Measure Form, selecting the larger measurement of the two within 1/16" of each other, as you enter:
- Product Type
- Tubing Color
- Frame Step
Shape: Select Rectangle. Only select Custom if working with a special shape such as an arch or octagon. For custom-shaped windows, please refer to the Custom Order Form.

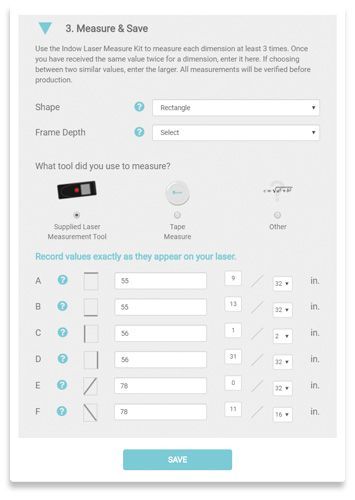

Enter your measurements as they appear on your Measure Form. Type the whole number in the space provided. Type the top number of the fraction* in the field provided. Use the drop down to select the bottom part of the fraction. Do not enter any additional symbols or spaces. See example:
Tip: If you are entering a whole number, the fraction section will automatically show “0/2”. There is no need to edit.
Notes section: If you found bows, add description here. Note which side is bowed; the direction (inward/concave or outward/convex) as well as the height of the bow.
Review your information before you submit for review. You can always come back to add more windows if you want to start with a few now.
Watch out for typos! Having trouble resolving a red or yellow issue? Select the “schedule a support call” option.
Everything entered and all errors resolved? You’re now ready to submit your order.
Don’t send your Laser Measuring Kit back until your order has been reviewed and confirmed by our experts and payment has been submitted.
Once we receive your measurements, our team will run further checks. When the assessment is complete and any issues have been resolved, we’ll send you a final invoice. You’ll have a chance to review your order before making the final payment.
Important Note: If you feel any items in your order need attention, contact your Fit Specialist before you proceed. Remember, our Snug Fit Guarantee applies to measurements submitted through Measure by Indow as long as certain conditions are met, such as using Indow measurement tools, resolving all errors, and reporting all irregularities (i.e.: bows) in your Measure By Indow portal. For a full list, visit: here.
Nice Work! Measurement Accepted
Tip: Can’t find your link to access Measure by Indow?
Go to: measure support

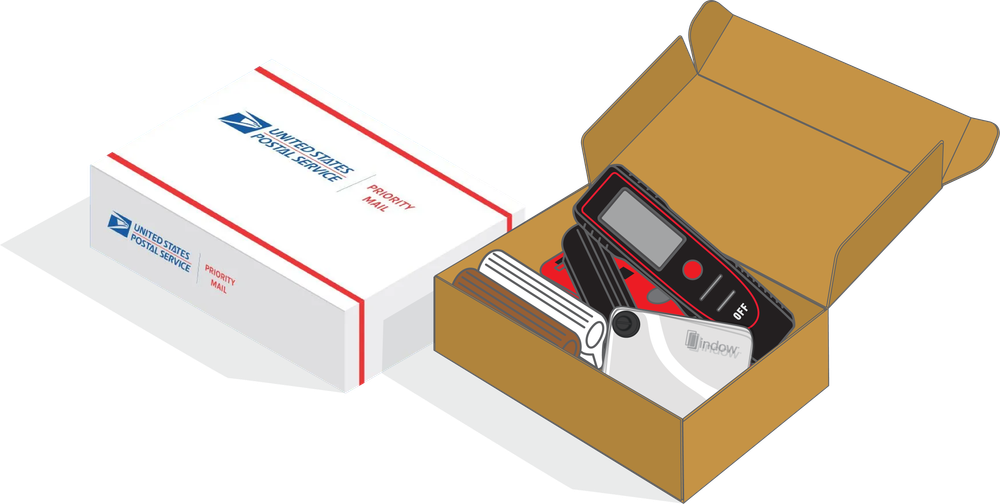

Return the Laser Measuring Kit
Once an Indow representative has approved your submitted measurements, you’ll get an email from us so you can confirm your order. Then it’s time to return the kit. Apply the included return shipping label over the existing shipping label and mail the kit back to us in the USPS box in which it arrived.
Remember we can’t ship your order until we receive the kit.
Appendix
Tips For Using the Laser Tool
Diagonal Tool Tips
See our Diagonal Guide.
Hold the bottom to create resistance - the legs don’t have rubber so they can be adjusted easily.
Use two hands on the tool to keep it steady when pressing the button.
Place a book in front of the stabilizing (black) leg to keep it steady and prevent sliding.
Hold your finger on the red measuring button and keep an eye on the laser dot.
Enter dimensions displayed on the laser screen. Our system accounts for the length of the extension tail.
Do not tilt the laser towards you or the glass. It should be measuring where the insert will be installed.
Sloped Frame Tips
If the frame slopes inward toward the glass or outward away from the glass, it can pose installation issues. Use these tips or ask your Fit Specialist if you have compatibility questions.
Your frame cannot have a slope angle that exceeds 15°, but if any slope is present, you should follow these steps. You also need a frame depth of at least ¾".
Check for slope angle with level, default iPhone measure app, or Android measure app (search for “angle meter”).
Measure in from the front of your frame to where you want to install your insert on all four joints and mark with tape.
Use these markings when measuring: for where to place laser tool and where to aim laser dot.
If your frame depth is ¾" - 1", record the location and degree of the slope in the notes field in Measure by Indow when placing your order.
Get to Know Your Window
Window Terms
Joint
Where two sides or inside edges of the window frame meet. You might think of these as the corners of the window, but they are not 3D because they do not include the glass pane as a side.
Muntin
See our: Mullion Guide.
A bar of wood or metal separating and supporting panes of glass in window.
Sash
Part of the window that holds the panes. It fits inside the window frame and moves inside of it (when the sash is operable). Sashes vary depending on the type of window. For example, sometimes instead of sliding up along the frame, they tilt in or out.
Mullion
A metal H-shaped bar stationed in the window frame to divide a window into smaller units either vertically or horizontally. Window inserts require mullions for support when placed in extremely large window frames (using two window inserts to cover one opening). View our Mullion Guide here or connect with your Fit Specialist if you believe you need to add Mullions to your order.
Window Hardware
Some windows, especially those with a sash, will have hardware which may protrude into one of the frame steps.
Operable Window
An operable window is one that can be opened. Some, usually older, windows have been sealed shut.
Measurement Map
Measurement Terms
Frame Step
The flat surfaces within a window frame. This is what the compression tubing of your window insert will press against. Some windows have just one frame step, some have more. Some frame steps are interrupted by a lower sash or hardware.
A compatible frame step has to be free of any obstructions fully exposed and continuous to have an Indow insert installed. It must also have a frame depth of at least 5/8". Check out our Frame Step video for more information.
Frame Depth
How deep your frame step is, measured from front to back. You can measure it by laying the multi-tool flat against the frame step as far back as it goes and sliding it around the frame step. If there are no obstructions you have to move your multi-tool for, you have an approved frame depth for an Indow insert! You just need an approximation for your order:
Note: If you are installing your insert where blinds are present, you will need a frame depth of at least 1 1/4" behind the blinds on the top of your window frame.

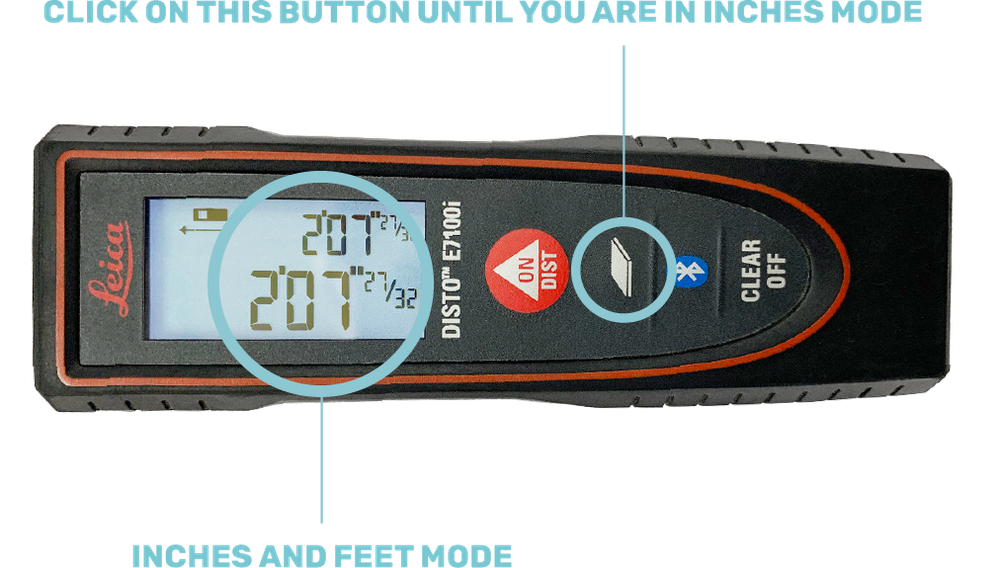

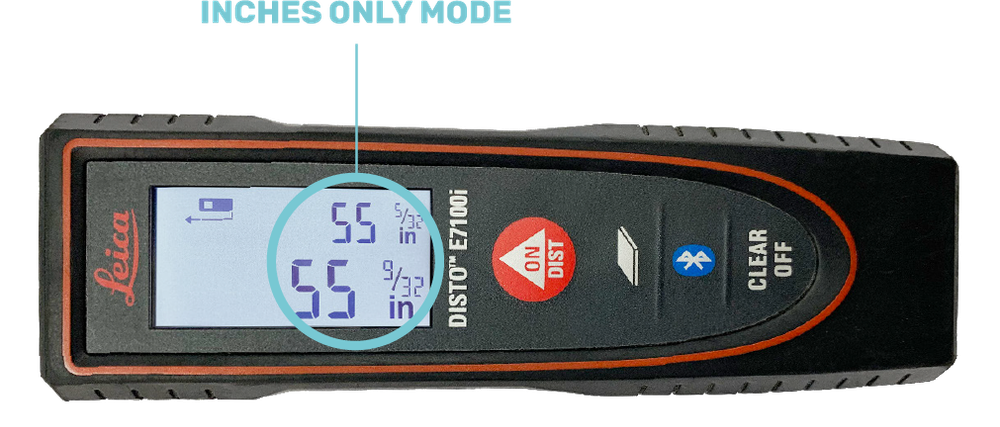

Laser Measure Tool Mode
